Come Up SealSlim 12.5 RS Winch
- Rated Line Pull: 5,670 kg / 12,500 lb
- Line Speed No Load: 7.7 mpm / 25.3 fpm 45A at 12V
- Line Speed Full Load: 0.9 mpm / 3.0 fpm 470 A at 12V
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 225:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
- Built-in digital two-way signal wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord

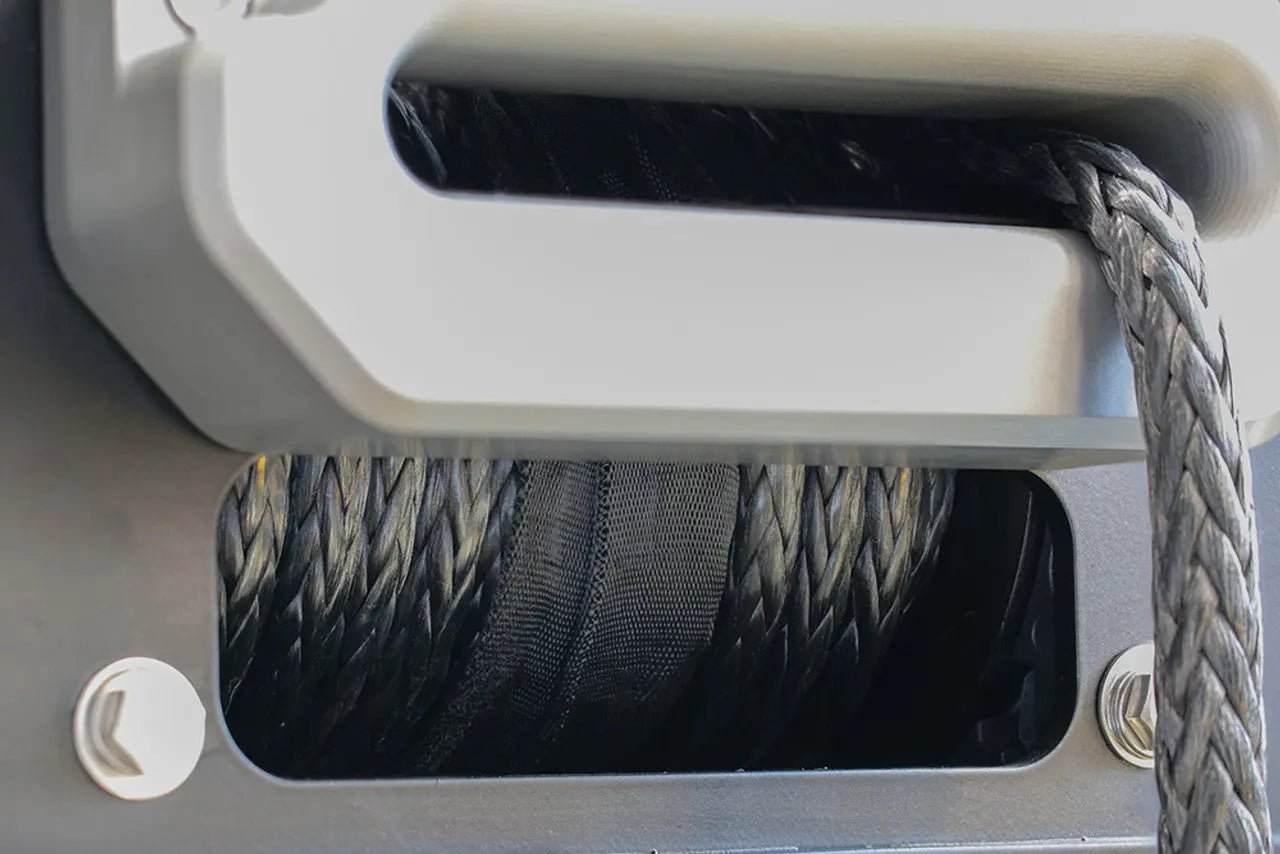

- 65ft Synthetic rope (approx 55ft usable)
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Foot forward mounting (only foot forward mounting can meet SAE J706)
- Matte Black Powder Coaded
Note: This winch is ONLY available in this kit as it was specifically made to fit the INEOS Grenadier per the specifications needed.

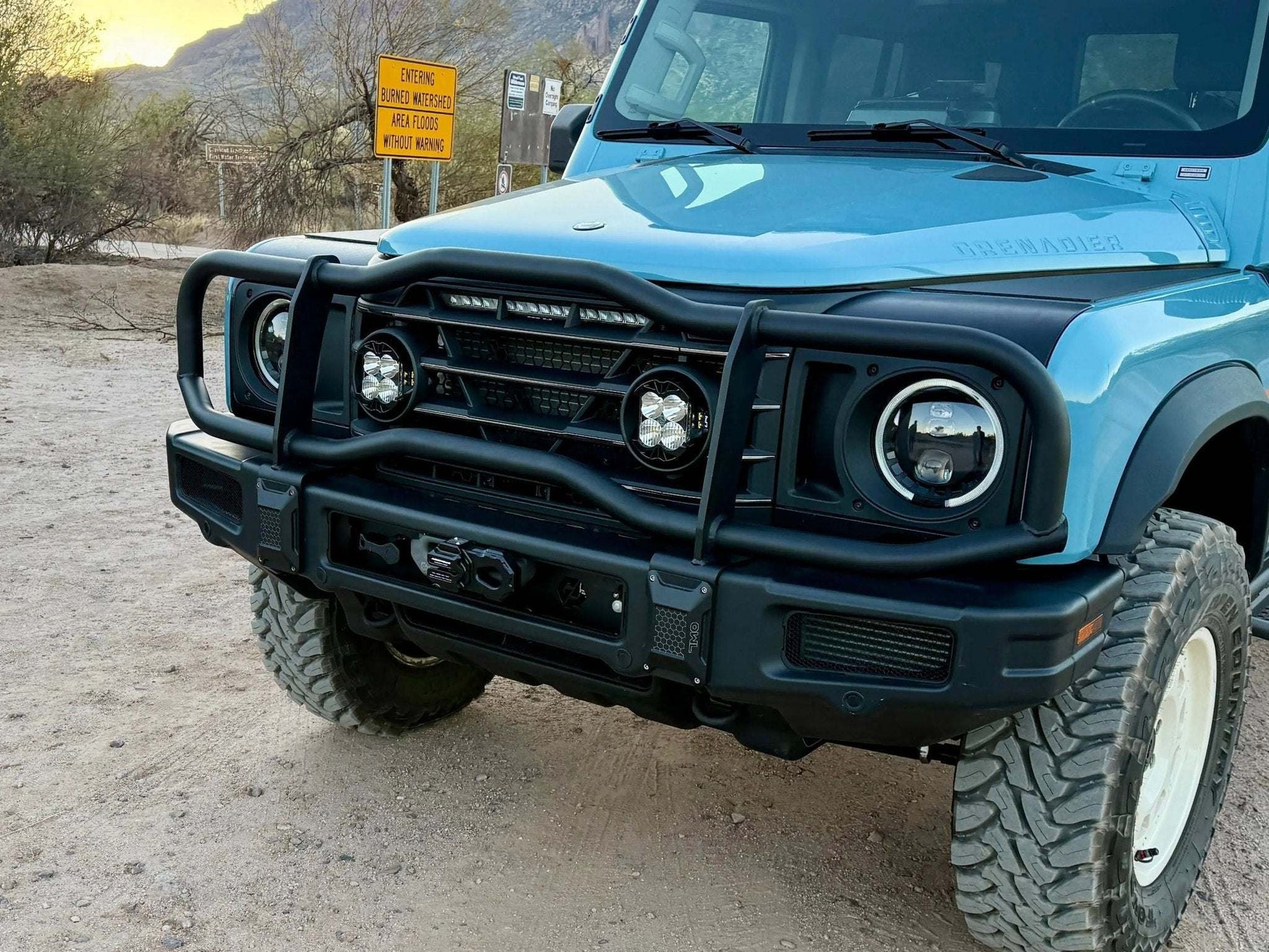

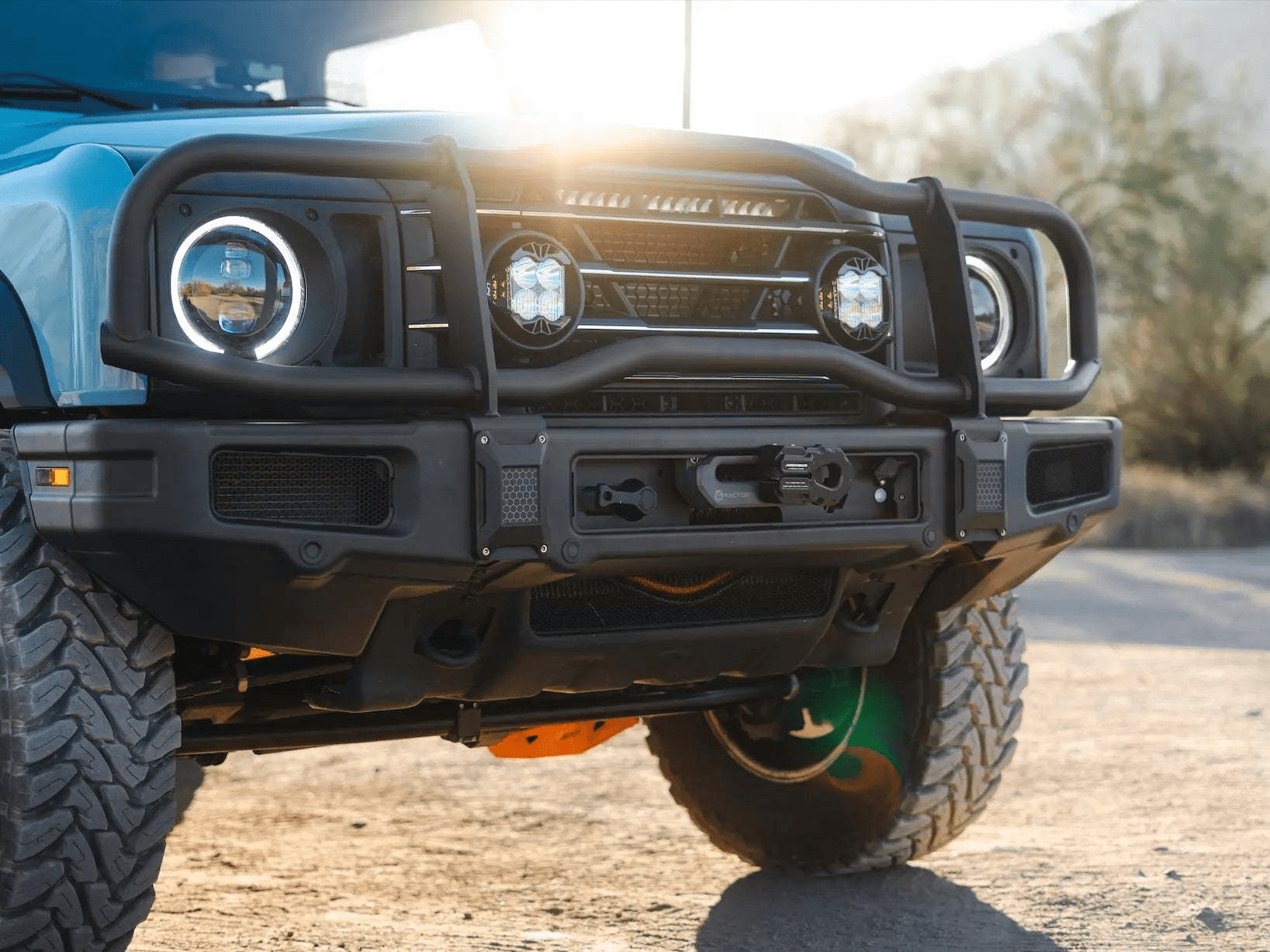

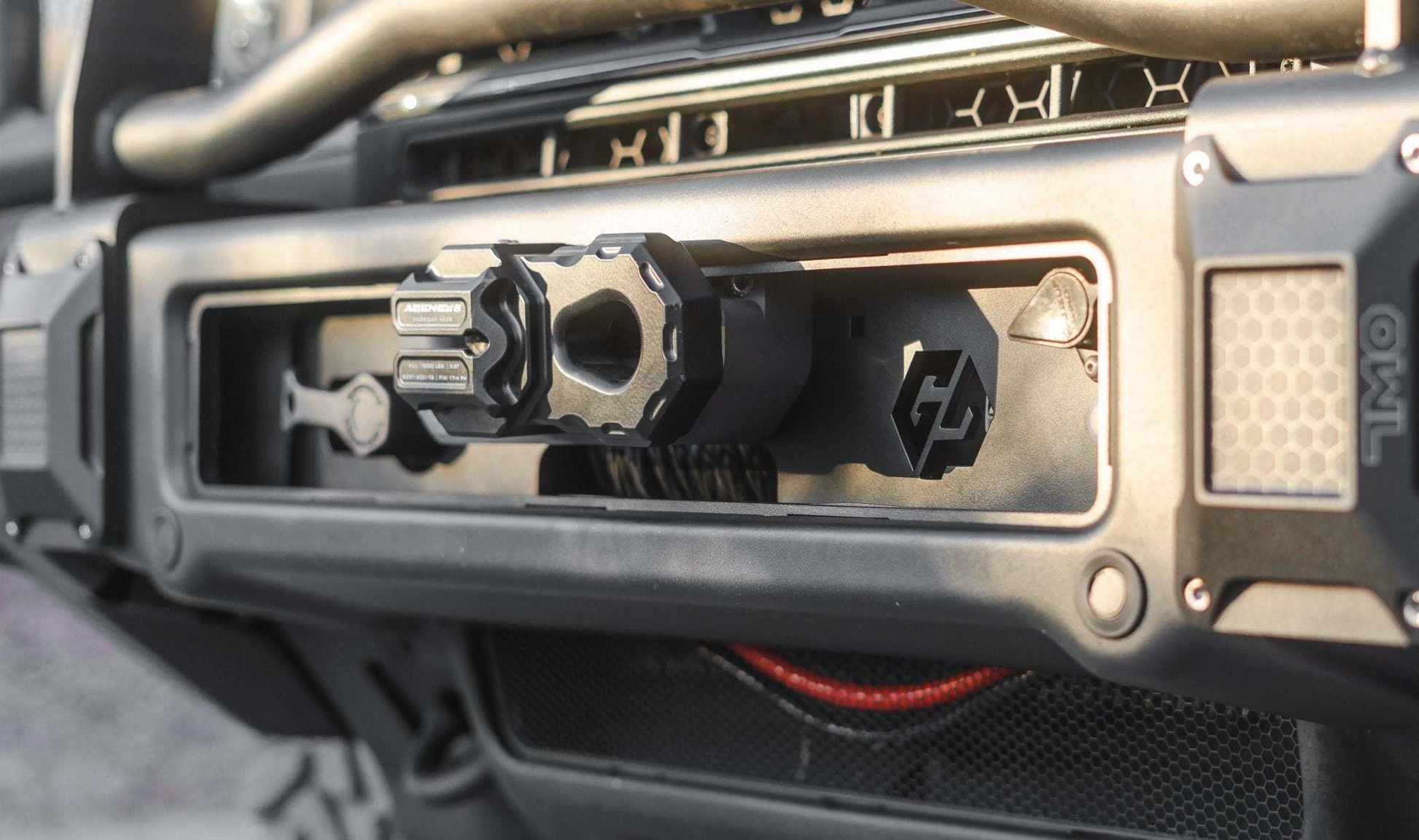

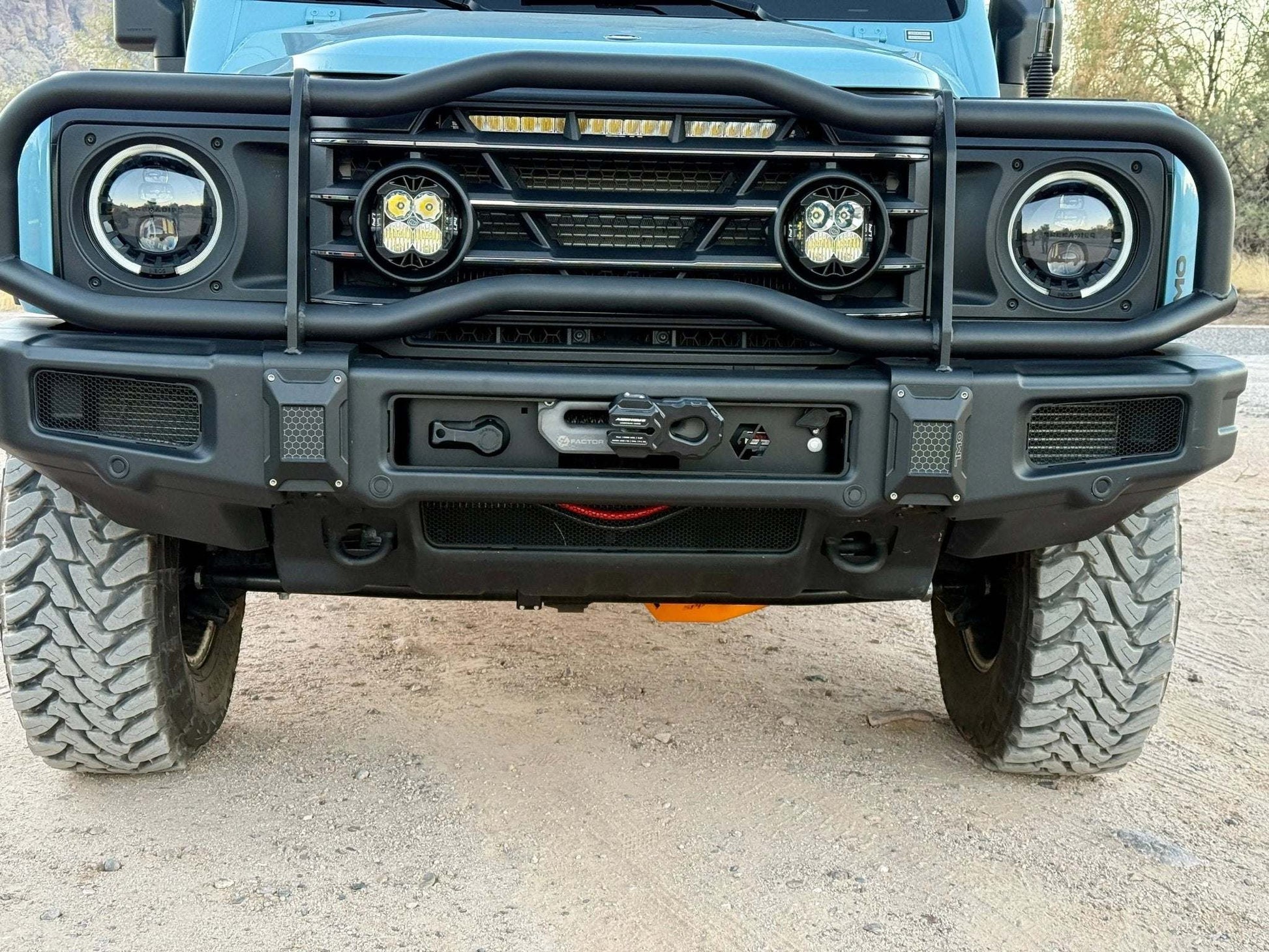

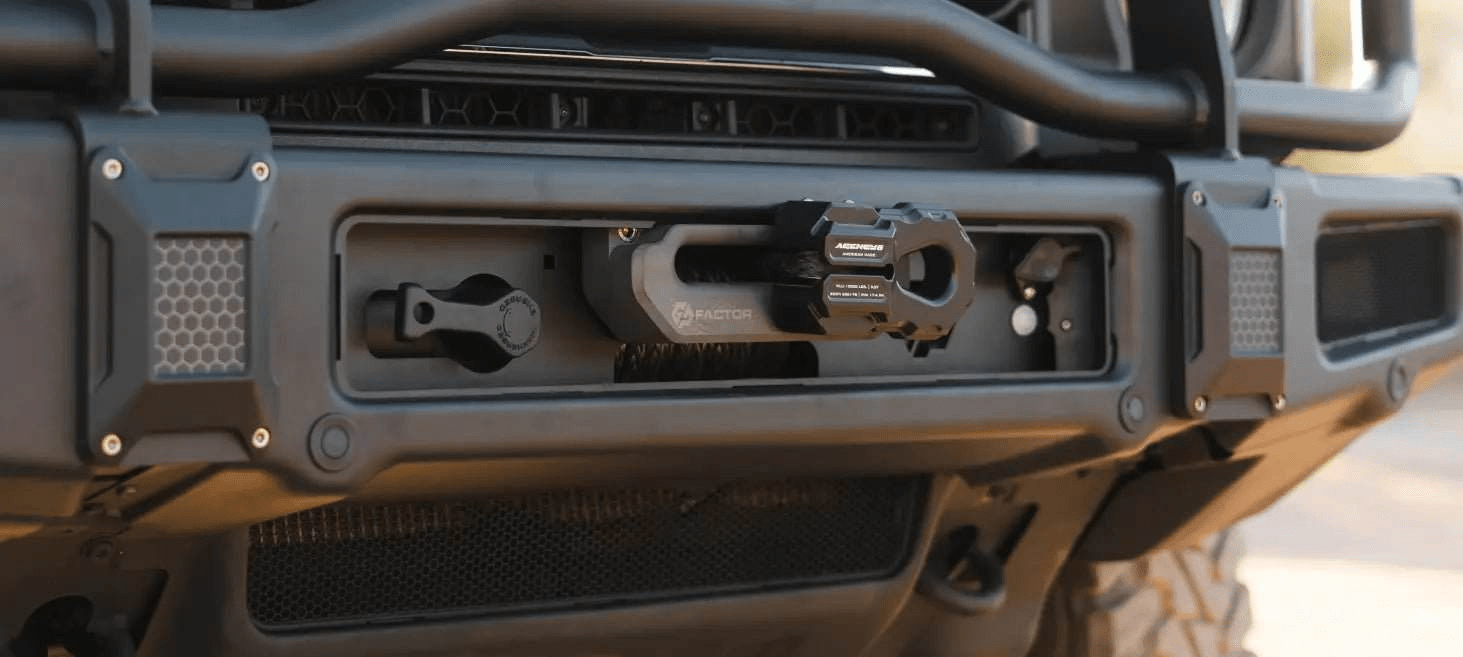

Grenadier Winch Kit : Hidden 12.5K Winch
INEOS Grenadier
Come Up SealSlim 12.5 RS Winch
- Rated Line Pull: 5,670 kg / 12,500 lb
- Line Speed No Load: 7.7 mpm / 25.3 fpm 45A at 12V
- Line Speed Full Load: 0.9 mpm / 3.0 fpm 470 A at 12V
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 225:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
- Built-in digital two-way signal wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- 65ft Synthetic rope (approx 55ft usable)
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Foot forward mounting (only foot forward mounting can meet SAE J706)
- Matte Black Powder Coaded
Note: This winch is ONLY available in this kit as it was specifically made to fit the INEOS Grenadier per the specifications needed.
