Van Compass

Sprinter Suspension : Stage 6.3 2" Lift (3500 AWD)

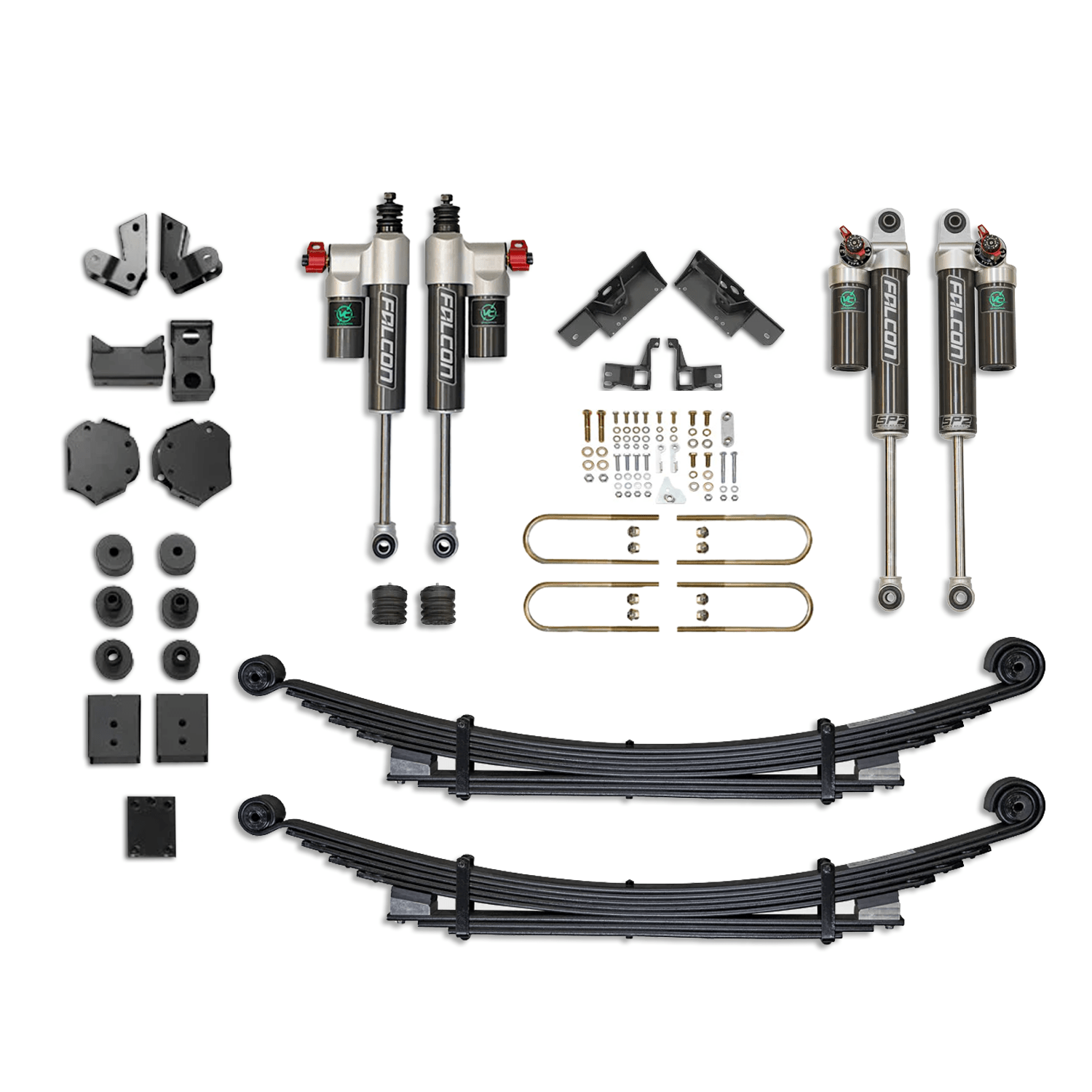

The Stage 6.3 kit combines Van Compass's Stage 2.3 package with the Striker 4x4 Sprinter 2.0” lift system to improve the ride quality of the van and add clearance for larger tires.

Install Available at Owl Offroad Locations in Checkout
$6,994.45
Model:  Sprinter AWD 3500 (2024-Present)
Add Ons:
Sprinter Strut : Rally adjustable shock by Falcon for Owl Outdoor

The Rally Strut makes the van much less harsh over small bumps and soaks up those big hits. In our test runs, we had the van with all four wheels off the ground like a rally car and it landed like a cloud, not kidding.

Add on the Jounce bracket for AWD vehicles.

Sprinter Strut : Rally Adjustable  • $2,268.95
In Stock - Ships within 1 week
How can we help you?
Van Compass STAGE 6.3 2" LIFT for 2023+ Sprinter + Ekko 3500 AWD - Owl Outdoors
Sprinter Suspension : Stage 6.3 2" Lift (3500 AWD)
JOIN WAITLIST Provide us your email + phone and we’ll contact you when this item becomes available again.
You're all set! 🎉 We'll let you know as soon as this item is back in stock. Thanks for your interest! There was an error submitting the form. Please try again.

By providing your email you agree to receive one time notifications about stock updates. By signing up, you will receive OWL offers, promotions and other commercial messages. You are also agreeing to OWLS's Privacy Policy. You may unsubscribe at any time.

By providing your mobile number in this form, you agree to receive recurring automated promotional and personalized marketing text messages (e.g. cart reminders) from OWL at the cell number used when signing up. Consent is not a condition of any purchase. Reply HELP for help and STOP to cancel. Msg frequency varies. Msg and data rates may apply. View Terms & Privacy.

STAGE 6.3 - EKKO + 3500 AWD Sprinter 2" LIFT (2023 - Present) VAN COMPASS - Owl Vans

Van Compass 6.3 Kit Overview

STAGE 4.3 - VAN COMPASS SUSPENSION PACKAGE VAN WITH FALCON 3.3 ADJUSTABLE SHOCKS - SPRINTER 4X4 (2007-CURRENT 2500) - Owl Vans

Falcon Shock Settings

Adjustable shocks for any condition:

1 - Full soft (off-road, rain, snow etc).

2- Adjustable (uses clickers on shock)

3- Full Stiff (towing a trailer, freeway driving)

Sprinter Tire Module : Oversized (35" Tires) - RennTech - Owl Outdoor

Larger Tires

With this lift kit, 315/75/16 (35”) tires can be fitted with the following conditions met: Removal of the front mudflaps, Slight trimming of the rear of the front fender, Trimming of the front bumper and front inner fender well liner. Minimum of a 9/16” (14mm) wheel spacer be installed on factory steel wheels with 54mm of offset or any other wheel that has comparable offset. This is for tire clearance between the inside of the tire and the strut and rear inner fender. ** Sold separately

Opti Rate Tunability

Using a combination of a main leaf pack, and an overload pack beneath it that is tuned to match, we've created a system that can have the spring rate changed easily without removal. Billet machined Adjustable Preload Spacers (APS) fit on the tips of the lower helper spring and engage the spring as a complete unit. Configurable in 3 ways, this allows for 3 distinct spring rate options depending on the customer's needs.

Key Features

Decade of Leaf Spring Tuning Experience
The Opti-rate spring gives new flexibility in tuning both your spring rate and ride height, all in one package.
Industry-First Tunable Preload System
The Adjustable Preload Spacers are machined blocks with stackable delrin glide pads that preload the secondary stage into the main stage.
Easy Adjustability
Changing the preload spacers requires little more than a floor jack, socket wrench, and a mallet; the springs can stay in the vehicle.
